750V, 1.5kV, 3kV, 25kV Clever Cantilever

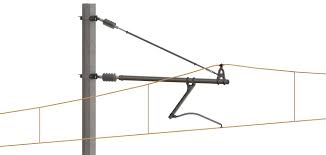

CLever is an innovative cantilever for railway electrification, developed for 750 V, 1,5 kV, 3 kV, 25 kV transport networks. CLever was designed to deliver reliable performance for speeds up to 300 km/h. This innovative cantilever solution benefits from Alstom’s extensive experience in the field of electrification systems and component manufacture.
DESCRIPTION
• Fully compatible with various basic designs
• Reduce installation time by up to 40%
• Homologated by Network Rail in the United Kingdom
• CLever is compliant with EN 50119
• Fully recyclable product
• Aluminium components improving the handling to increase safety and efficiency of installation
• European Patent – EP 14306631.4
DESIGN BENEFITS
• Reduced number of components
• Modularity improved to reduce spare parts
• Low aerodynamic resistance
• Fast installation and easy regulation
• Registration bracket fully adjustable
• High compression stability
• Lower deflection (as opposed to round tube)
• Mechanical resistance optimised for the application
• Avoids wrong installation
• Closed section to avoid dust, water, ice and grit deposit
Manufacturer
Alstom’s centre of excellence based in Lecco has 110 years of experience in designing and manufacturing power transmission components for railway infrastructure, power plants and other applications, known as Cariboni feeding systems.
